    WDS-MR300 Elevator Overload Measurement System 5000kg Rope Tension Overload Control Device

    Ask Lasest Price
    Brand Name : SUMT, ANT
    Model Number : WDS-MR300
    Price : USD55-100/PC
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 5000-1000pcs/month
    Delivery Time : 3-20 working days depending on the quantity
    • Product Details
    • Company Profile

    WDS-MR300 Elevator Overload Measurement System 5000kg Rope Tension Overload Control Device

    SUMMIT integrated intelligent WDS-MR300 5000kg mounting on multiple cables ropes tension measuring overload control device


    Description:

    The intelligent SUMMIT load weighing device WDS-MR series are used to evaluate the load inside the car, and it is convenient and fast to clamp on multiple wire ropes,easy installation and WDS-MR100/200/300 series provides real time load information and uses that information to tell the controller how to operate accordingly, In addition, the user friendly keypad allows flexible programming. An automatic calibration mode is also available, This multiples wire ropes load weighing device is perfect for modernization as well as for new installations

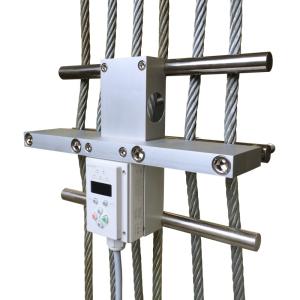

    A typical SUMMIT WDS-MR300 assembly installation takes just a few minutes. Th load weighing ghing device WDS-MR200 is just attached to the ropes above the roof of the cab by means of a central clamp whose tightness is determined by a pair of spacers. (The two clamp spacers are precisely sized for different diameter rope; the rope diameter is engraved on the spacers.) The clamp presses the ropes onto two cylindrical sensors. The width of the clamp will vary with the dimension of the spread of the ropes


    Features:

    1. Overload weighting system with extremely attractive performance cost ratio
    2. Meet the requirement of EN81
    3. Controller configured with 6 keys and 4 digits LED display
    4. Thanks to the integrated control unit, no additional cables are needed to connect the sensors and control unit
    5. Easy installation, only a few minutes are needed to install multi-rope sensors
    6. Suitable for steel rope diameter 8-16mm
    7. Roping adjustable by keys
    8. Rated load from 300kg to 5000kg depending on the roping setting, as much as 18000kg


    Lod weighing device WDS-MR 300 Size:

    Control Unit: WDS-MR200
    Operation Voltage:AC/DC19-39VRope diameter8-16mm
    Nominal power:≤4WAnalog outputoptional
    Alarm relays3Hod input12~230V AC/DC
    Max.switching voltage250VACMeasuring range300~4500kg
    Max.peak current5AMaximum load5000kg
    Rated current3ADimension158x230x115mm
    Rated load(resistive) in AC1800VAGalvanically isolationOptional
    Rated load(inductive) in AC15200VACable length3m

    SUMMIT Elevator Load Weighing Control device system could provide versatile installationmethods like rope hitch installation, under car platform installation, crossbeam installation, clamping on traction rope installation in order to offer a safe and comfortable elevator running status.

    Universal device for working with different load cells:

    1. Under floors:UC-AP-OMS-560

    2. Clamping on wire rope:WDS series, RH-SM-OMS-560

    3. Machine bed frane:RHP-X-OMS-560

    4. Between the wire rope hitch plate:RHP-E-OMS-560


    A solution providing very precise load weighing way, and Under cab sensors are not recommended for modernization.Simple solutions for modernization with no impact on the existing regulated travel parameters

    Very simple installation with no mechanical modification Cost-effective load weighing with a single sensor which can be scaled for a precise result.
